上篇文章中提到Spine和Dragonbones两个工具，这几天先研究了一下Spine的部分换装的实现，看看是否符合项目需求，简单记录一下。

由于需要在iOS和Android两个平台上使用，所以需要一个支持C或C++的运行库，在官方上找到只有两个：SFML和cocos2d-x，本着支持国产（。。）先使用cocos2d-x先试验一下。

了解cocos2d-x

一个简单的游戏界面(这里是官方教程的摘要)：

导演(Director)

Cocos2d-x 使用导演的概念，这个导演和电影制作过程中的导演一样！导演控制电影制作流程，指导团队完成各项任务。在使用 Cocos2d-x 开发游戏的过程中，你可以认为自己是执行制片人，告诉 导演(Director) 该怎么办！一个常见的 Director 任务是控制场景替换和转换。 Director是一个共享的单例对象，可以在代码中的任何地方调用。它完成包括设置OpenGL ES运行环境、启动Game Loop等在内的一系列工作。

场景(Scene)

上面的画面就可以看做一个场景，一个游戏由很多场景组成，一个场景可以代表一个关卡、一声战斗等等。

场景图(Scene Graph)

场景图(Scene Graph)是一种安排场景内对象的数据结构，它把场景内所有的 节点(Node) 都包含在一个 树(tree) 上。(场景图虽然叫做"图"，但实际使用一个树结构来表示)。

这个树决定了场景的绘制顺序——树的中序遍历顺序就是场景中事物的绘制顺序。

我们使用Scene的addChild()方法构建场景图：

// Adds a child with the z-order of -2, that means
// it goes to the "left" side of the tree (because it is negative)
scene->addChild(title_node, -2);

// When you don't specify the z-order, it will use 0
scene->addChild(label_node);

// Adds a child with the z-order of 1, that means
// it goes to the "right" side of the tree (because it is positive)
scene->addChild(sprite_node, 1);

渲染时 z-order 值大的节点对象会后绘制，值小的节点对象先绘制。如果两个节点对象的绘制范围有重叠，z-order 值大的可能会覆盖 z-order 值小的。

精灵(Sprite)

所有的游戏都有 精灵(Sprite) 对象，精灵是您在屏幕上移动的对象，它能被控制。你喜欢玩的游戏中主角可能就是一个精灵，我知道你在想是不是每个图形对象都是一个精灵，不是的，为什么? 如果你能控制它，它才是一个精灵，如果无法控制，那就只是一个节点(Node)。

动作(Action)

创建一个场景，在场景里面增加精灵只是完成一个游戏的第一步，接下来我们要解决的问题就是，怎么让精灵动起来。动作(Action) 就是用来解决这个问题的，它可以让精灵在场景中移动，如从一个点移动到另外一个点。你还可以创建一个动作 序列(Sequence) ，让精灵按照这个序列做连续的动作，在动作过程中你可以改变精灵的位置，旋转角度，缩放比例等等。

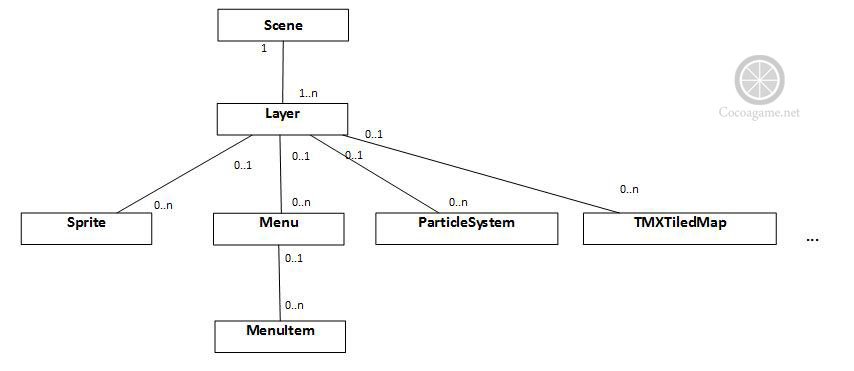

总结起来，一个游戏主要由上述模块构成，它们的对应关系以及类图如下（图片引自网上）：

运行官方Demo

  1. Install Xcode
  2. Install Homebrew
  3. Open a terminal and install CMake via brew install cmake
  4. Download the Spine Runtimes repository using git (git clone https://github.com/esotericsoftware/spine-runtimes) or download it as a zip via the download button above.
  5. Open a terminal, and cd into the spine-runtimes/spine-cocos2dx folder
  6. Type mkdir build && cd build && cmake ../... This will download the cocos2d-x dependency and wire it up with the example source code in spine-runtimes/spine-cocos2dx/example. The download is 400mb, so get yourself a cup of tea.
  7. Open the Xcode project in spine-runtimes/spine-cocos2dx/example/proj.ios_mac
  8. Expand the cocos2d_libs.xcodeproj sub project, delete the group editor-support/spine. This will remove the outdated Spine cocos2d-x runtime shipped by cocos2d-x.
  9. Click the Run button or type CMD+R to run the example

以上是官方指导，开始里没按这个来，结果没有cocos2dx的环境，这个指导的位置在文档的中部，不是很容易引起注意。

理解Spine的结构

Spine的结构是 Skeleton(骨架)-->Bone（骨头）-->Slot（插槽）-->Attachment(附件)。 一个插槽可以有多个附件，但一次只能看到一个，即一个Slot当前状态只能有一个Attachment存在。一个插槽的多个附件不能同时可见的原因是如果同时可见的话，附件的绘制顺序就无法明确。

自己画完图后发现这个图已经有了。。。。

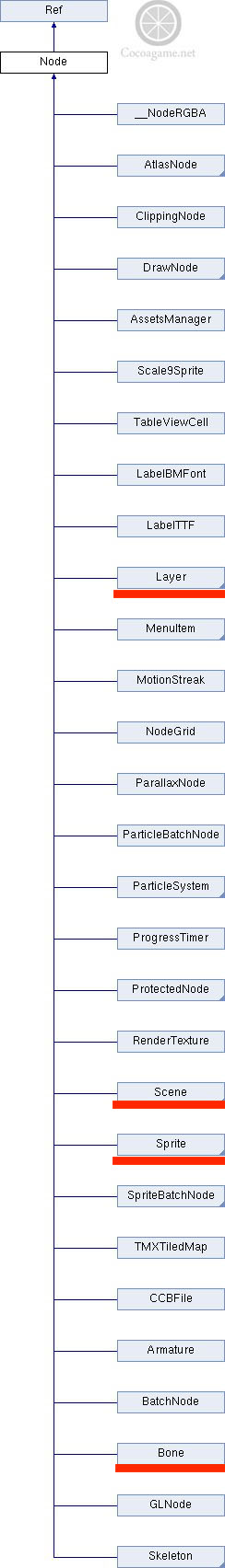

Node

它是cocos2d的基类，scene上的对象基本都是继承它，比如：Scene, Layer, Sprite, Menu, Label。

它提供以下功能：

SkeletonRenderer

提供了Skeleton的绘制功能。同时提供了setSkin，setAttachment等设置接口，以及findBone，findSlot等get接口

SkeletonAnimation

绘制Skeleton和使Skeleton完成动画的一个类，提供了AnimationState，在加入多个动画时使用。

更改Spine源代码

我们部分换装的思路是动态的更换skin内slot中的attachment，如果spine使用了改变attachment的方法来做动画的话，需要将skin中的对应slot中的所有attachment都换掉，这就需要定一个和设计方面的规则，用来换装。

基础功能实现如下，在SkeletonAnimation.c中加入如下函数：

//根据slot和attachment的名字来换装
bool SkeletonAnimation::replacementParts(const std::string& skinName, const std::string& slotName, const std::string& attachmentName) {
    if (skinName.empty())
    {
        return false;
    }

    spSkin *skin = spSkeletonData_findSkin(_skeleton->data, skinName.c_str());
    if (!skin) return false;
    spSlot *slot = spSkeleton_findSlot(_skeleton, slotName.c_str());
    if (!slot) return false;
    spAttachment *attachment = spSkin_getAttachment(skin, slot->data->index, attachmentName.c_str());
    if (attachment)
    {
        spSlot_setAttachment(slot, attachment);
        // 在当前皮肤中添加贴图
        spAttachment *newAttactment = this->copyAttachment(attachment);
        spSkin_removeAttachment(_skeleton->skin, slot->data->index, attachmentName.c_str());
        spSkin_addAttachment(_skeleton->skin, slot->data->index, attachmentName.c_str(), newAttactment);
    }
    return true;
}

/*只适用于attachment的loader为Cocos2dAttachmentLoader*/
/*目前只实现了SP_ATTACHMENT_REGION和SP_ATTACHMENT_MESH这两种，由于时间原因，其它的类型暂未用到，就没有实现，有时间时再实现*/
spAttachment *SkeletonAnimation::copyAttachment(spAttachment *att) {
        spAttachmentType type = att->type;
        const char* name = att->name;
    spAttachmentLoader *attachmentLoader = SUB_CAST(spAttachmentLoader, Cocos2dAttachmentLoader_create(this->_atlas));

        switch (type) {
            case SP_ATTACHMENT_REGION: {
                spRegionAttachment *oldRegion = SUB_CAST(spRegionAttachment, att);
                const char* path = oldRegion->path;
                spAttachment* attachment;
                attachment = spAttachmentLoader_createAttachment(attachmentLoader, _skeleton->skin, type, name, path);
                spRegionAttachment *region = SUB_CAST(spRegionAttachment, attachment);
//                const void *const vtable = att->vtable;
                memcpy(&region->x, &oldRegion->x, sizeof(float)*7);
                memcpy(&region->color, &oldRegion->color, sizeof(spColor));
                memcpy(&region->regionOffsetX, &oldRegion->regionOffsetX, sizeof(float)*16 + sizeof(int)*6);
                attachment->attachmentLoader = attachmentLoader;
//                FREE(region->path);
//                MALLOC_STR(region->path, path);
                spRegionAttachment_updateOffset(region);
                spAttachmentLoader_configureAttachment(attachmentLoader, attachment);
                return attachment;
            }
            case SP_ATTACHMENT_BOUNDING_BOX: {
                spAttachment* attachment = spAttachmentLoader_createAttachment(attachmentLoader, _skeleton->skin, type, name, 0);
                spVertexAttachment *vertexAtt = SUB_CAST(spVertexAttachment, attachment);
                spVertexAttachment *oldVertexAtt = SUB_CAST(spVertexAttachment, att);
                memcpy(vertexAtt, oldVertexAtt, sizeof(spVertexAttachment));
                vertexAtt->bones =  (int *)MALLOC(int, oldVertexAtt->bonesCount);
                memcpy(vertexAtt->bones, oldVertexAtt->bones, sizeof(int) * oldVertexAtt->bonesCount);
                vertexAtt->vertices =  (float *)MALLOC(float, oldVertexAtt->verticesCount);
                memcpy(vertexAtt->vertices, oldVertexAtt->vertices, sizeof(float) * oldVertexAtt->verticesCount);
                spAttachmentLoader_configureAttachment(attachmentLoader, attachment);
                return attachment;
            }
            case SP_ATTACHMENT_MESH: {
                spMeshAttachment *oldMesh = SUB_CAST(spMeshAttachment, att);
                const char* path = oldMesh->path;
                int vertexCount;
                spAttachment* attachment;
                spMeshAttachment* mesh;
                attachment = spAttachmentLoader_createAttachment(attachmentLoader, _skeleton->skin, type, name, path);
                mesh = SUB_CAST(spMeshAttachment, attachment);
                MALLOC_STR(mesh->path, path);
                memcpy(&mesh->color, &oldMesh->color, sizeof(spColor));
                vertexCount = SUPER(oldMesh)->worldVerticesLength;
                mesh->regionUVs =  (float *)MALLOC(float, vertexCount);
                memcpy(mesh->regionUVs, oldMesh->regionUVs, sizeof(float) * (vertexCount << 1));
                mesh->triangles =  (unsigned short *)MALLOC(unsigned short, oldMesh->trianglesCount);
                memcpy(mesh->triangles, oldMesh->triangles, sizeof(unsigned short) * (oldMesh->trianglesCount));
                spVertexAttachment* vertexAtt = SUPER(mesh);
                spVertexAttachment* oldVertexAtt = SUPER(oldMesh);
                vertexAtt->verticesCount = oldVertexAtt->verticesCount;
                vertexAtt->bonesCount = oldVertexAtt->bonesCount;
                vertexAtt->bones = (int *)MALLOC(int, oldVertexAtt->bonesCount);
                memcpy(vertexAtt->bones, oldVertexAtt->bones, sizeof(int) * oldVertexAtt->bonesCount);
                vertexAtt->vertices =  (float *)MALLOC(float, oldVertexAtt->verticesCount);
                memcpy(vertexAtt->vertices, oldVertexAtt->vertices, sizeof(float) * oldVertexAtt->verticesCount);
                spMeshAttachment_updateUVs(mesh);
                mesh->hullLength = oldMesh->hullLength;

                mesh->edgesCount = oldMesh->edgesCount;
                mesh->edges = (int *)MALLOC(int, oldMesh->edgesCount);
                memcpy(mesh->edges, oldMesh->edges, sizeof(int) * oldMesh->edgesCount);
                mesh->width = oldMesh->width;
                mesh->height = oldMesh->width;
                spAttachmentLoader_configureAttachment(attachmentLoader, attachment);
                return attachment;
            }
            case SP_ATTACHMENT_LINKED_MESH: {
//                const char* skinName;
//                const char* parent;
//                spAttachment* attachment;
//                spMeshAttachment* mesh;
//                const char* path = readString(input);
//                if (!path) MALLOC_STR(path, name);
//                attachment = spAttachmentLoader_createAttachment(self->attachmentLoader, skin, type, name, path);
//                mesh = SUB_CAST(spMeshAttachment, attachment);
//                mesh->path = path;
//                readColor(input, &mesh->color.r, &mesh->color.g, &mesh->color.b, &mesh->color.a);
//                skinName = readString(input);
//                parent = readString(input);
//                mesh->inheritDeform = readBoolean(input);
//                if (nonessential) {
//                    mesh->width = readFloat(input) * self->scale;
//                    mesh->height = readFloat(input) * self->scale;
//                }
//                _spSkeletonBinary_addLinkedMesh(self, mesh, skinName, slotIndex, parent);
//                if (freeName) FREE(name);
//                return attachment;
            }
            case SP_ATTACHMENT_PATH: {
//                spAttachment* attachment = spAttachmentLoader_createAttachment(self->attachmentLoader, skin, type, name, 0);
//                spPathAttachment* path = SUB_CAST(spPathAttachment, attachment);
//                int vertexCount = 0;
//                path->closed = readBoolean(input);
//                path->constantSpeed = readBoolean(input);
//                vertexCount = readVarint(input, 1);
//                _readVertices(self, input, SUPER(path), vertexCount);
//                path->lengthsLength = vertexCount / 3;
//                path->lengths = MALLOC(float, path->lengthsLength);
//                for (i = 0; i < path->lengthsLength; ++i) {
//                    path->lengths[i] = readFloat(input) * self->scale;
//                }
//                if (nonessential) readInt(input); /* Skip color. */
//                if (freeName) FREE(name);
//                return attachment;
            }
            case SP_ATTACHMENT_POINT: {
//                spAttachment* attachment = spAttachmentLoader_createAttachment(self->attachmentLoader, skin, type, name, 0);
//                spPointAttachment* point = SUB_CAST(spPointAttachment, attachment);
//                point->rotation = readFloat(input);
//                point->x = readFloat(input) * self->scale;
//                point->y = readFloat(input) * self->scale;
//
//                if (nonessential) {
//                    readColor(input, &point->color.r, &point->color.g, &point->color.b, &point->color.a);
//                }
//                return attachment;
            }
            case SP_ATTACHMENT_CLIPPING: {
//                int endSlotIndex = readVarint(input, 1);
//                int vertexCount = readVarint(input, 1);
//                spAttachment* attachment = spAttachmentLoader_createAttachment(self->attachmentLoader, skin, type, name, 0);
//                spClippingAttachment* clip = SUB_CAST(spClippingAttachment, attachment);
//                _readVertices(self, input, SUB_CAST(spVertexAttachment, attachment), vertexCount);
//                if (nonessential) readInt(input); /* Skip color. */
//                clip->endSlot = skeletonData->slots[endSlotIndex];
//                spAttachmentLoader_configureAttachment(self->attachmentLoader, attachment);
//                if (freeName) FREE(name);
//                return attachment;
            }
        }
        return 0;
}

在skin.c文件中加入下面函数

void spSkin_removeAttachment (spSkin* self, int slotIndex, const char* name) {
    _Entry* entry = SUB_CAST(_spSkin, self)->entries;
    _Entry* pre = NULL;
    while (entry) {
        if ( (entry->slotIndex == slotIndex) &&
            (strcmp(entry->name, name) == 0) ) {
            if (pre) {
                //不是头结点
                pre->next = entry->next;
            }
            if (entry == SUB_CAST(_spSkin, self)->entries) {
                SUB_CAST(_spSkin, self)->entries = entry->next;
            }

            _Entry_dispose(entry);
            break;
        }

        pre = entry;
        entry = entry->next;
    }
}

效果视频
